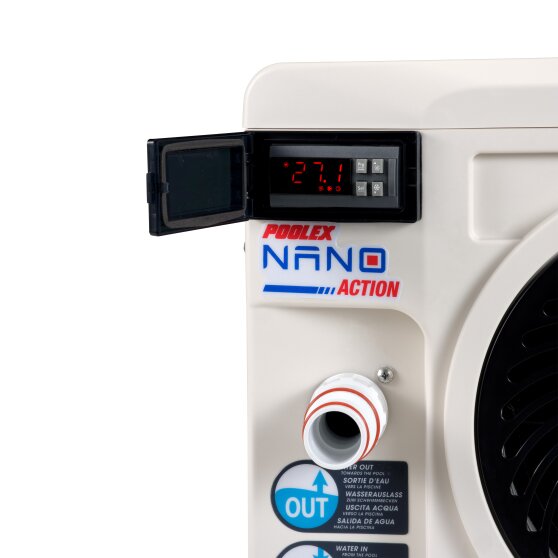

Pool heat pump 16m3 (4kW) - white

No longer available
  • Energy efficient heat pump
  • Warm swimming pool water
  • Digital control
  • Easy to connect
  • Extends the swimming pool season
  •  Free shipping from €50

  • Personal advice, also via chat!

  • Excellent warranty conditions

Do you have a question?
We are here to help you!

+31 314 - 796 020

Monday to Friday
8.30am - 5.00pm

Pool heat pump 16m3 (4kW) - white

The swimming pool heat pump is an alternative for heating up swimming pool water. The heat pump has a capacity of 16.000 liters (4 kW) and can easily be connected to the filter pumps with capacities starting from 530 gal/hr. The heat pumps turns the outside air into heat and is already effective with an outside temperature of 8 degrees. The transferred heat can then be used to heat up the swimming pool water up to 40 degrees. The heat pump not only extends the swimming season, but it also allows you to enjoy using your swimming pool on less sunny days.

Easy installation

The heat pump can easily be connected to the swimming pool and the filter pump with simply two tubes. One tube connects to the filter pump and the other one to the swimming pool. Easy as that!

General characteristics
-
+
Article number
PC-NANO-A4+hose
EAN code
8720088269602
Product group
Frame pool accessories
Colour
White
Dimensions
-
+
Weight
28.58 kg
Weight

What is the total weight of the product, including the packaging?

Heat pump / heating
-
+
Dimensions
38.5 x 40 x 28 cm
Dimensions

What are the measurements of the pump?

Voltage
230V
Voltage

What is the voltage of the included heat pump of the swimming pool?

Wattage
900 watts
Wattage

How much power does the heat pump consume?

IP code
IPX4
IP code

Which IP code does the included heat pump have? The IP-code shows whether the heat pump is protected against moisture coming in from outside. A pump with an IP-code 5 is well protected against water, but is not entirely waterproof. Always check that there is not too much water on the pump.

Easy connect
Yes
Easy connect

Is the heat pump easy to connect with the use of a manual, also without any technical knowledge?

Noise from a meter’s distance
55db
Noise from a meter’s distance

What is the level of noise measured in decibels from a distance of one meter?

Diameter hose connection
32 mm, 38 mm
Diameter hose connection

What is the diameter of the hose connection of the heat pump?

Pool volume
≤ 16 m³ (4 kW)
Pool volume

What is the maximum amount of cubic meters of water that the pump can heat up ?

Control panel
Digital display
Control panel

How can this product be operated? The pump has an integrated digital screen.

COP
4, 5
COP

What is the COP-value of the heat pump? This value shows the ratio between the energy used by the heat pump and the amount of heat it produces. The higher the value, the less energy the pump needs to heat up the water.

Heating temperature range
15 - 40 ℃
Heating temperature range

Up until how many degrees can the pump heat up the swimming pool or spa?

Operating range
10 - 43 ℃
Operating range

Starting from which outside temperature does the pump work?

Filtercapacity
530 gal/h (2006 liters)
Filtercapacity

What is the filter capacity of the heat pump? This refers to the minimal filter capacity of the filter pump that the heat pump needs to work.

Warranty
2 years
Warranty

What is the warranty period of the heat pump?

Packaging information

This product comes in 2 boxes with a total weight of 28.58 kilos.

-
+
Box 1
EAN code
3700691413680
Dimensions (L x W x H) in cm
46 x 41.5 x 37
Gross weight (in kg)
28
Number of
1
Box 2
EAN code
6920388659284
Dimensions (L x W x H) in cm
32 x 23.5 x 19
Gross weight (in kg)
0.58
Number of
1
Standard included
  • Heat pump
